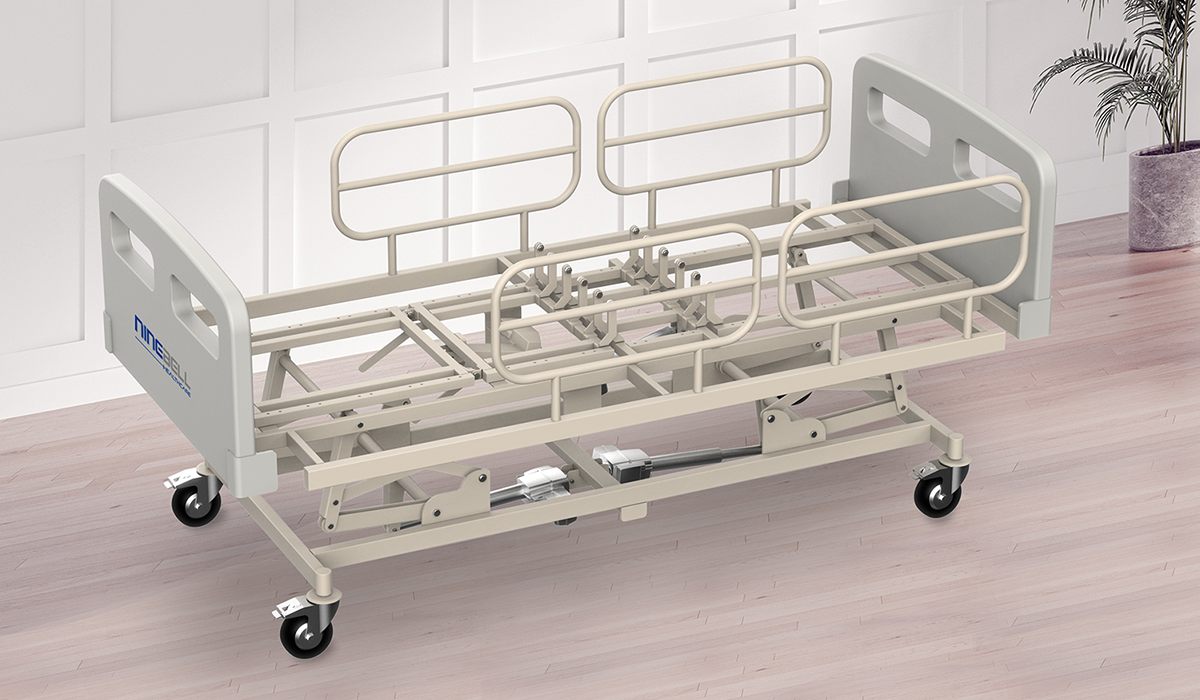

Electric Medical Bed

Electric Medical Bed

Electric medical beds are beds equipped with electric motors that can adjust the angle, height, and position of the bed to enhance patient
comfort and nursing efficiency. They can be used in hospitals, nursing homes, and home care, and come in various configurations such as
1-motor, 2-motor, 3-motor, and 4-motor, depending on the patient's needs. Specifically designed for use with alternating support mattresses,
such as those from Ninebell Healthcare, these beds cannot be used independently but can be combined with alternating support mattresses
for optimal functionality.

Contact us
  • 1Motor, 2Motor 4Motor Depending on customer needs, the application of 1-motor, 2-motor, or 4-motor beds includes
  • Backrest, Legrest, Height Adjustment: Allowing for adjustment of the backrest, legrest, and overall height of the bed to enhance user comfort
  • Design for User Safety: Incorporating safety features to ensure the well-being of the user during bed adjustments
  • Easy Attachment/ Detachment of Headboard and Footboard: Facilitating easy attachment and detachment of head and footboards for user convenience and maintenance.
  • Remote Control: Providing a remote control for convenient operation of the backrest, legrest, and simultaneous adjustment of both the backrest and legrest, as well as bed height

*NINEBELL Healthcare Alternating Pressure Mattress. This mattress cannot be used independently as a medical bed; it must be combined with an alternating pressure mattress.

Smart care bed specification
Overall Length (mm) 2,050
Overall Width (mm) 1,020
Bed Plate Height
[from floor to top
surface of bed]		 Minimum (Min) 370 mm
Maximum (Max) 720 mm
Positioning Angle Backrest Horizontal : 0˚~Maximum Angle: 72˚ / 24sec
Knee Gatch Angle Horizontal : 0˚~Maximum Angle : 26˚ / 12sec
Average Height Adjustment Speed of Mattress Support Platform (time taken from minimum to maximum height) 40sec
Length between Main Body Leg Locking Shafts(mm) 1,730
Height of Headboard and Footboard(mm) 550
Total Weight of Bed(kg) 195
Electrical Requirements Voltage(VAC) 100~240
Rated Frequency(Hz) 50/60
Power Consumption(VA) 300
Power Cord Length(m) 3.5
Noise Level(dB) less than 65
Number of Motors (Actuators) 4
Control Method Mini PC & Control Pad
Materials Frame Steel(CSI) with Powder Coating, Aluminum(AI)
Side Rails Steel Pipe, Plastic Molded
keyboard Aluminum(AI), Plastic Molded
Headboard, Footboar Beech Wood, Plastic Molded
Mattress Inner: Sponge (Filling Material) / Outer: Leather
Safe Working load Approximately 170kg (1,700N)
