Smart Care Bed

Smart Features and Convenience Beneficial for Nurses and Caregivers

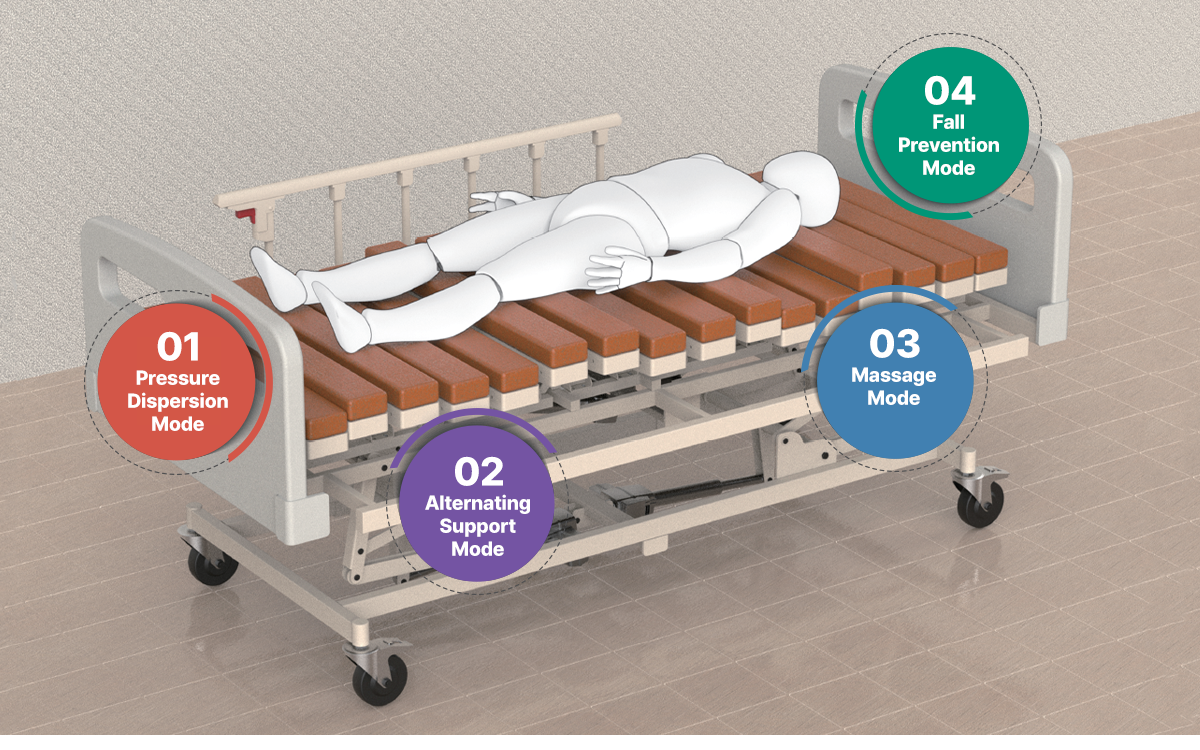

The world's first new robot bed designed to prevent pressure ulcers has been proposed.
The pressure exerted on the body is automatically adjusted to be lower than the threshold where pain begins (32mmHg).
To achieve this goal, highly accurate pressure sensors are used to measure pressure.
The bed, developed for pressure ulcer treatment, is fully electric, quiet, clean, and comfortable for patient care.

View More
Pressure ulcer prevention feature using pressure sensors and AI
  • Pressure control via 16 built-in keyboards with pressure sensors
  • Control of pressure below the pressure ulcer threshold (32mmHg) using algorithms embedded
    in the self-developed control board
  • Consists of two modes: Normal mode and Sleep mode
Pressure ulcer prevention feature using time control
  • Function to alternate odd and even keyboards according to a set time - 16 keyboards
    to reduce pressure
  • The alternating cycle can be selected according to patient convenience, consisting of six modes
  • Keyboards adapt to the patient's body shape to effectively prevent pressure ulcers
Massage function provided for fatigue recovery and convenience caused by the patient's bedridden life
  • Individual massage function through individual keyboard operation based on the pressure measured
    by pressure sensors
  • Consists of eight modes based on time and gap
  • Massage mode operation is limited to 20 minutes due to user safety
Fall prevention feature monitoring the patient's position with pressure sensors
  • Function to alert the risk of falls with alarm sounds and warning displays
  • If there is a risk of patient falls, the bed is lowered to the lowest height for safety
  • Function to detect the presence of patients inside the bed using pressure sensors
